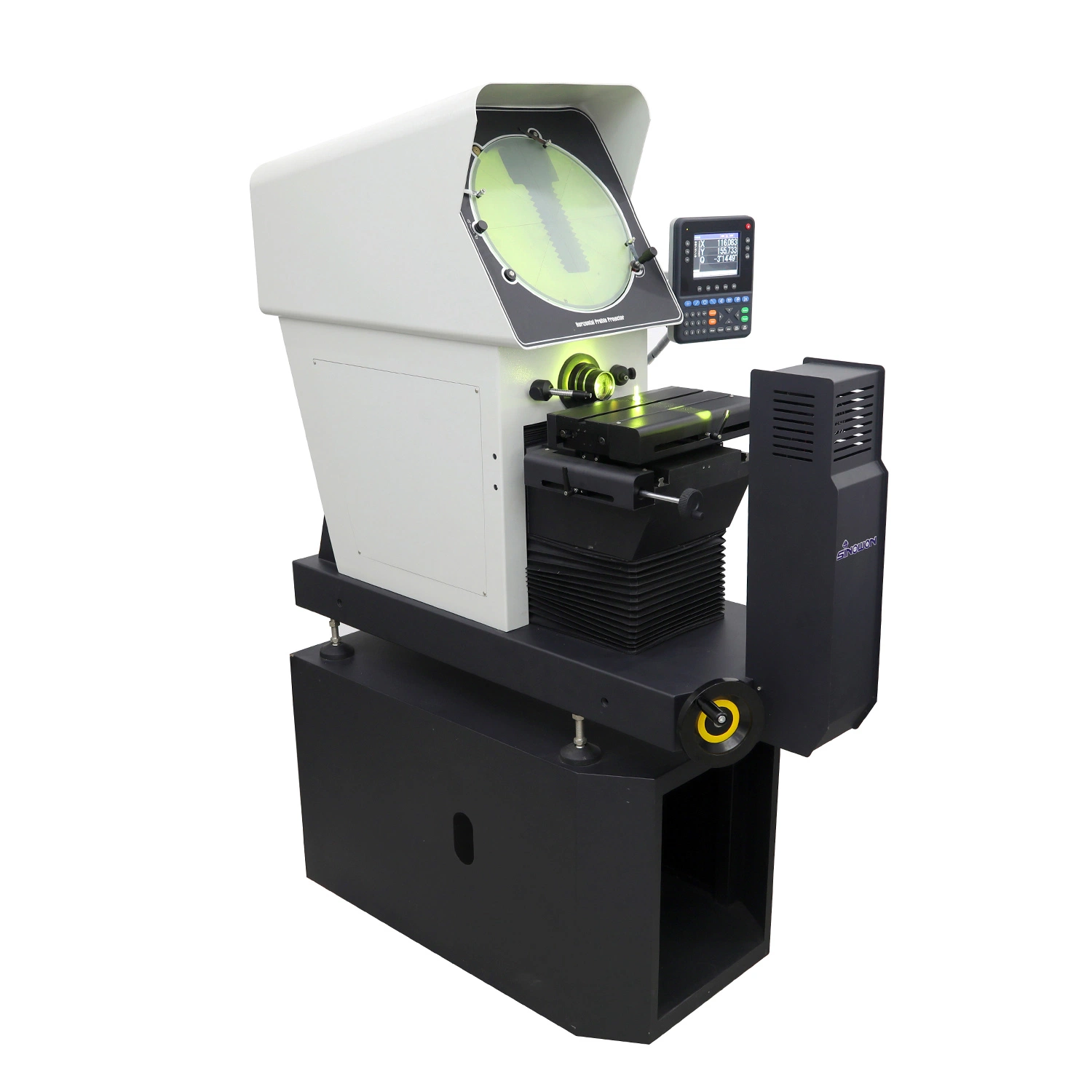

Product Features:
400mm diameter screen with digital protractor;
300x150mm precision movement work-stage, 300x200mm optional;
Work-stage sway range between 15°;
Halogen profile and fiber surface illumination adjustable;
Geometric multifunction data processing system DRO DP300;
Built-in Mini-printer;
Available 10x,20x,50x, objective rotary table and foot-switch, etc.
Technical Specifications:
| Reverse Image | PH400-3015(#512-401) |
| Obverse Image | PH400-3015Z(#512-421) |
| Metal Stage Size | 408x126mm |
| Stage Travel: X and Y-axis | 300x150mm |
| Stage Travel:Y-axis | 75mm (for focusing) |
| X and Z Linear Resolution | 0.0005mm |
| Sway Range | ±15° |
| Accuracy | ≤3+L/200(um) |
| Screen | Diameter :Ø425mm,Effective Range ≥ Ø400(with "* " Reticle) |
| Rotary Range: 0~360° ; Resolution Rotary Indicator: 1' or 0.01° | |
| Digital Readout | DP 300 (561-301) Multifunctional Data Processing System |
| Illumination | Contour illumination:24v/150w (halogen Lamp ) |
| Surface illumination:21v/150w (Optical Fiber) | |
| Power Supply | AC110V/60Hz; 220V/50Hz,650w |
| Dimension (D×W×H) | 1160x600x960mm |
| Packing Dimension (L×W×H) | 1300x880x1250mm |
| Instrument Gross/Net Weight | 200/160kg |
Standard Delivery:
| Product Name | Code # | Product Name | Code # | Product Name | Code # |
| Digital Readout DP300 | 561-301 | PH400-10x Objective | 512*W11 | Screen Clamp Device | 581-341 |
| Built-in Mini-printer | 581-901 | Power Cable | 581-921 | Operation Manual | PH400-3015 |
Optional accessories:
| Product Name | Code # | Product Name | Code # | Product Name | Code # |
| Measuring Software | 581-101 | Working Cupboard ST 02 | 581-621 | Standard Block ST-120 | 581-801 |
| PH400-20x Objective | 512*W21 | PH400-50X Objective | 512*W31 | Over-Chart ST 140 | 581-311 |
| Holder Clamp | 581-841 | V-shape Clamp | 581-831 | Swivel Center Support | 581-851 |
| Rotary Vise SRV-01 | 582-104 | Printer Paper | 581-911 | Foot-Switch ST 150 | 581-351 |
